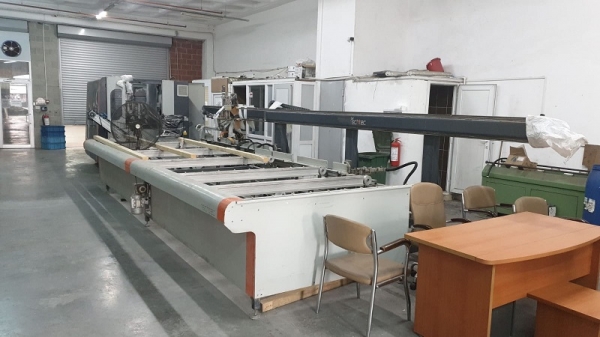

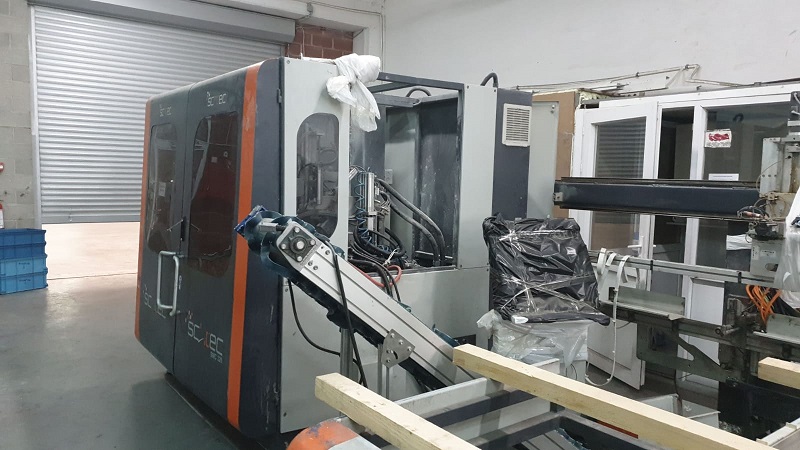

SMC 320 Profile Machining and Cutting Center 59.000 EURO

• This 3 axes controlled CNC processing center can do all operations on PVC profiles such as cutting, marking, opening key holes, copy routing for water slot milling, hinge holes, handle holes etc.
• All angles between 30 - 150 degrees are cut with 0.1 degree accuracy servo axis controlled 500 mm diameter saw.
• Routing and cutting processes are synchronized to run at the same time
• Saves time by simultaneously opening multiple holes on door profiles, such as door handles, slots by the axis control system on its router unit.
• With the processed profile, 11 pieces can be loaded on the machine. (Max.length 6.5 m)
• New design of loading station allow profiles to be loaded simultaneously. This feature saves time from loading process.
• Private HMI software developed by Schtec Software Departmant allows different kinds of window design program data files to be uploaded on machine.
• All alarms and machine faults are displayed on HMI along with solutions
• 15” Touch Screen and high performance industrial PC with Windows XP Embeded system. This system can operate fanless between 0°C and 55°C.
• Industrial PC Based Servo Control System (Beckhoff)
• Online diagnostic and troubleshooting via user friendly interface.
• File transfer by USB or ethernet network and remote desktop connection by WiFi or Ethernet connection
• Central lubrication system reduces the time spent for maintanence
• Automatic dust collection system sucks out all pvc dusts and removes wastes fast with 2 different carriers
• Optimisation option can be enabled for each projects seperately therefore machine make optimisation for waste profiles automatically.

Options ;

• Optional screwing station having two screw units allows simultaneous screwing of reinforcement steel and drilling of triple holes for handles via servo controlled axes system.
• For operations which can be done on profiles with a height greater than 120 mm and maximum cutting height, please inquire to us
