Four Corner Head Welding And Cnc Corner Cleaning Automation Line Murat Single Line 3 2015 production

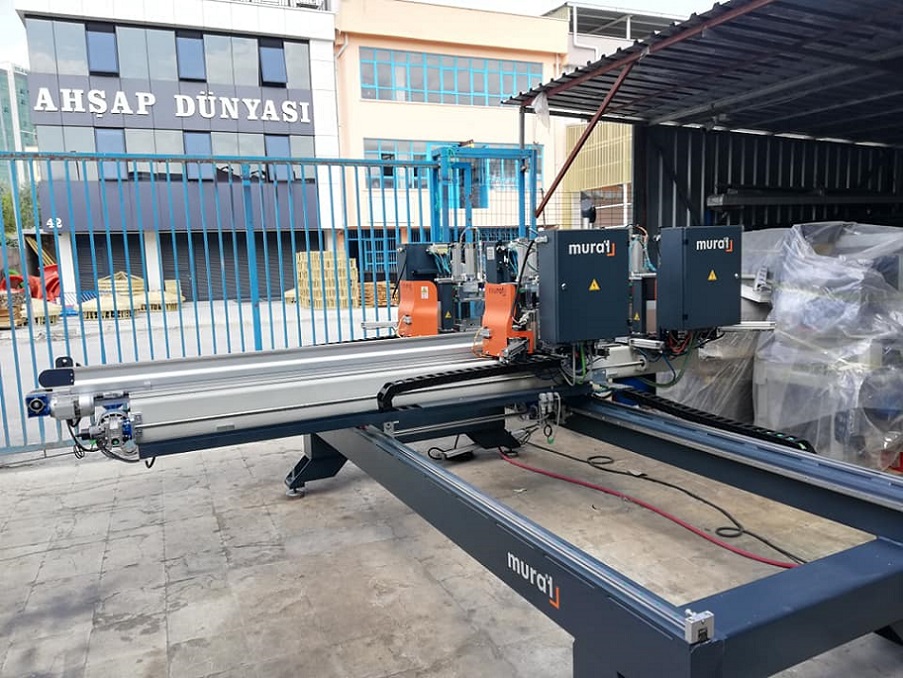

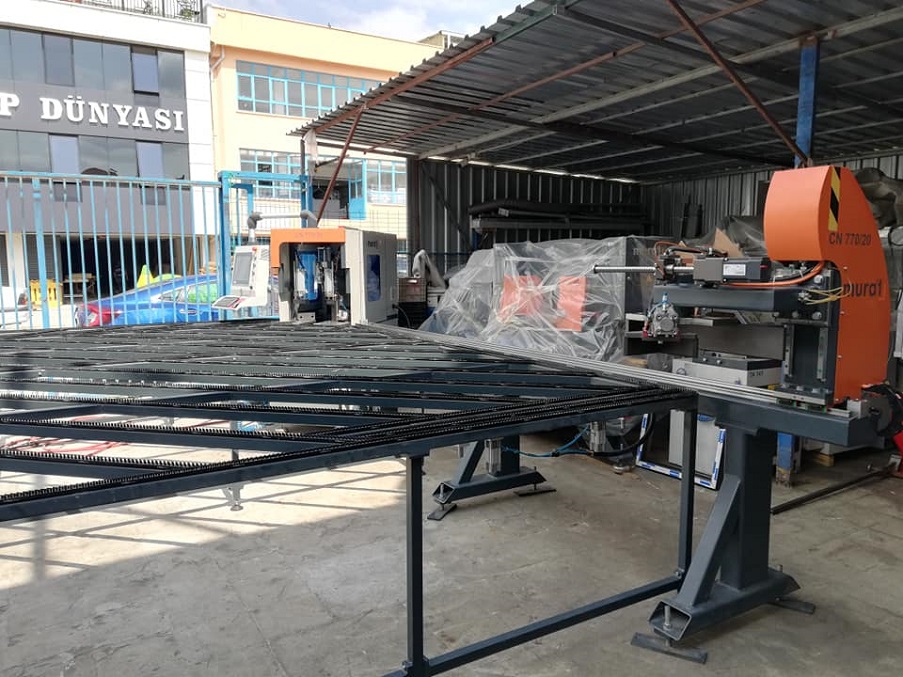

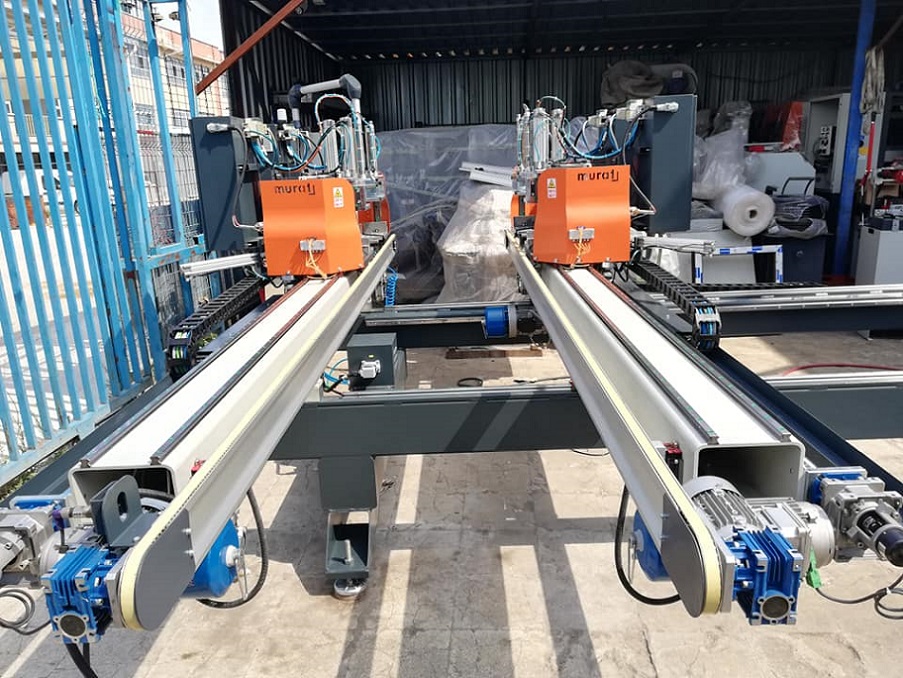

- Formed by the efficient combination of KD 658[1] Four Head Welding Machine, CK 187[2] Buffer Station, CK 180[3] Automatic Turning Station and CN 770/20[4] CNC corner cleaning machine in one production unit.
- Welded frame or sash is automatically transferred to the corner cleaning machine with all the data about the profile.

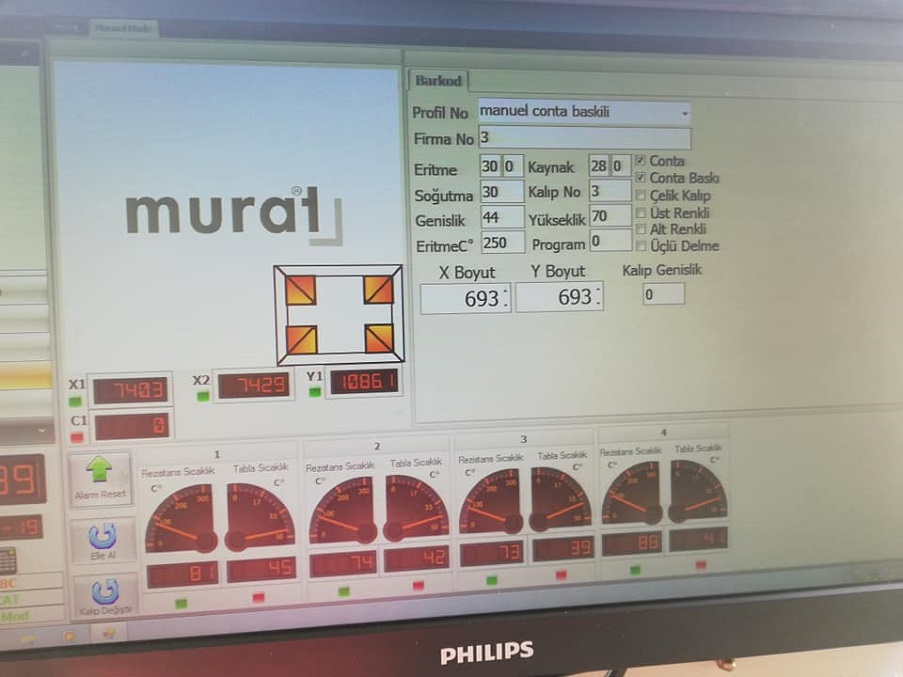

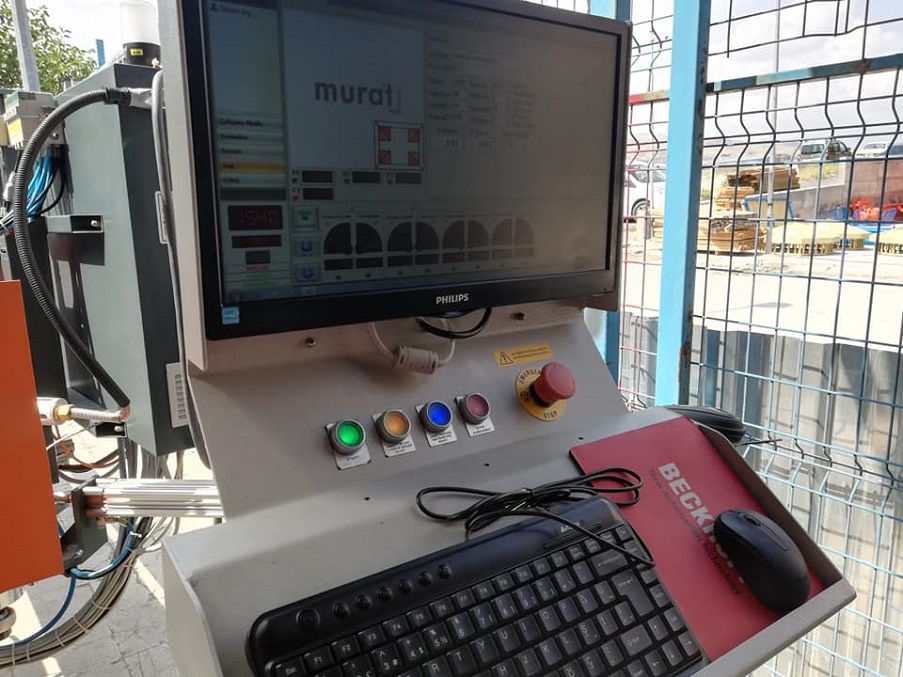

- All phases of the operation from loading of the profiles to the welding and corner cleaning process up to the unloading of the frames or sashes are controlled by computer.

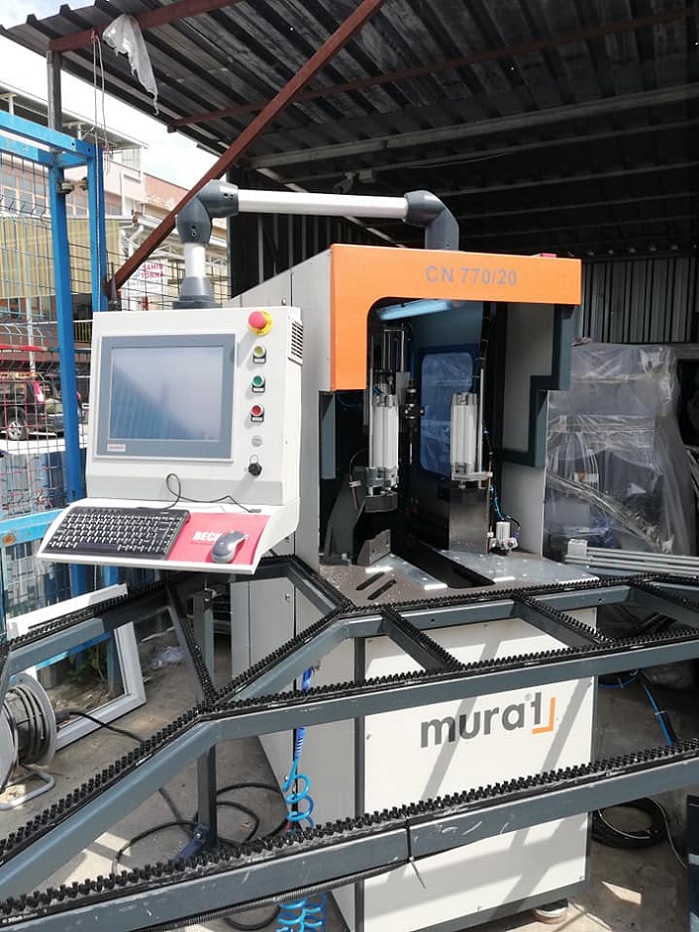

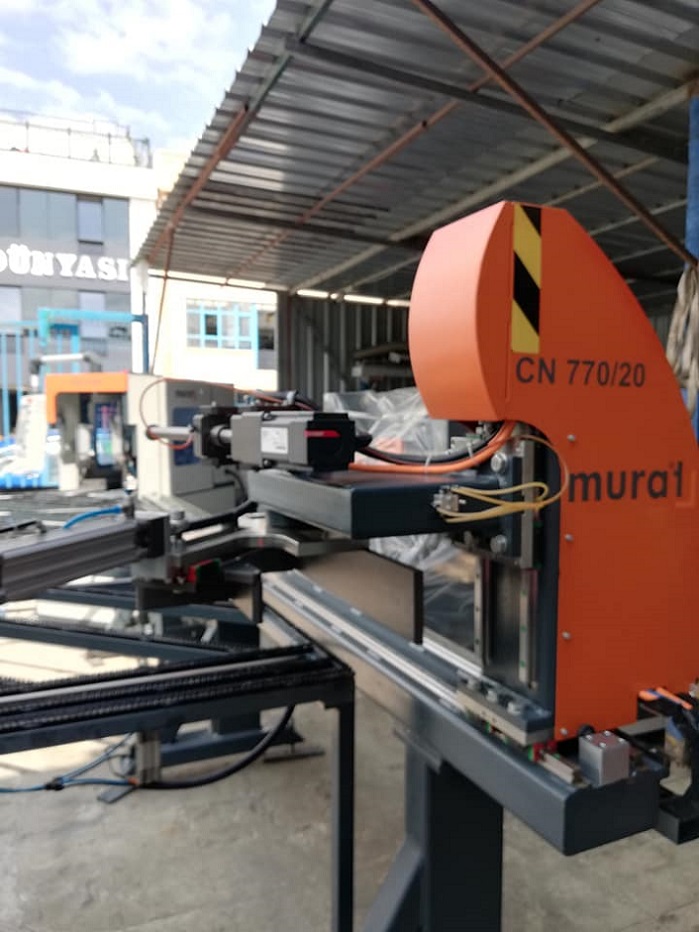

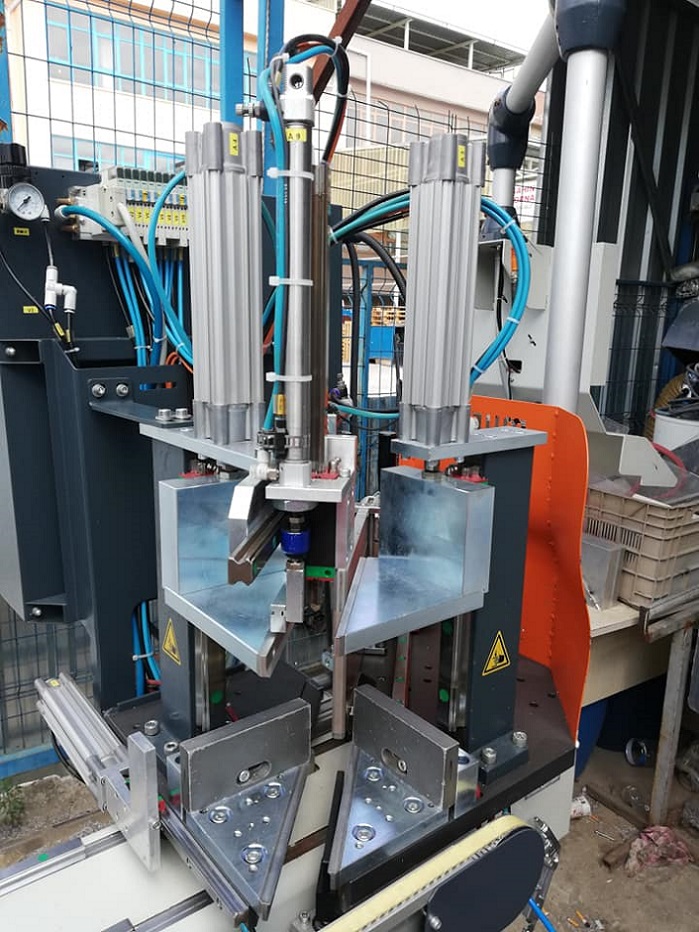

- CN 770/20 Corner Cleaning Machine can start cleaning the corners while the Four Head Welding Machine starts the welding process
- Servo Controlled CK 180 Automatic Turning Station turns the frame or sash at an appropriate speed related with the size and provides four corners to be cleaned.
- Corner cleaning machine automatically adjusting of rotation speed with the receiving data fom welding machine about geometric shapes ,measurements and calculation of reinfrocement steel weight.
- High mechanical stability, Servo Controlled CK 180 Automatic Turning Station enables frames fast and stabily turning with high accuracy.Small frames 1 second,big frames 1,5-4 second the positioning can done by urning the corner.
- CK 180 Automatic Turning Station turns the frame or sash at an appropriate speed related with the size and provides four corners to be cleaned.
- Profile identification informations is automatically transferred from the welding machine.
- Durable and precision movement of axis due to hardened rack and zero backlash geraboxes used in the gear system.
- By online connection to the entire system, remote detection of malfunctions and maintenance is available.
- The rails are specially coated to prevent corrosion
- Central lubrication system eases maintenance.
