MAK 550 FIERĂSTRĂU CIRCULAR CU CRESTĂTURĂ CU DOUĂ LAME

CIRCULAR WITH DOUBLE-SIDED CUTTING 550 DISC

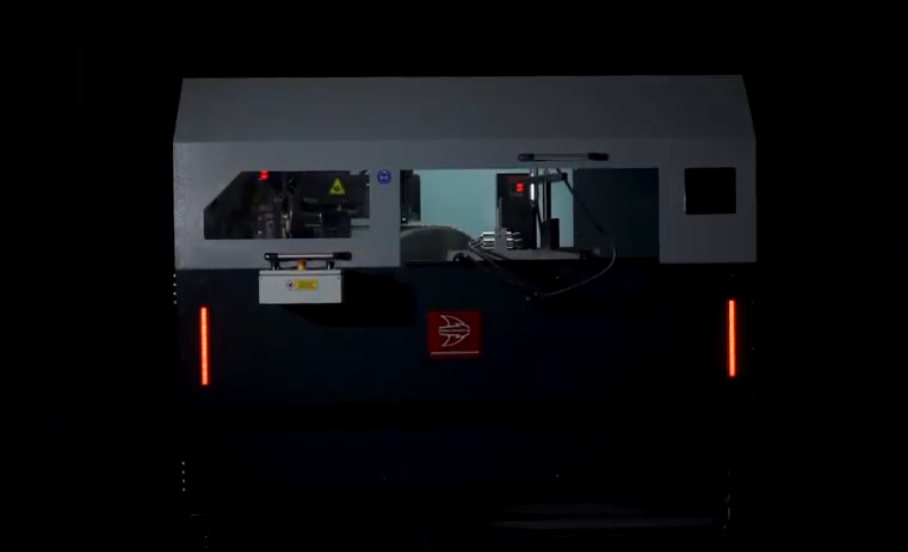

MAK 550 Machine features

• The machine can be used for cutting aluminum facade, lightness and cladding profiles.

• Processing capacity 280 mm x 300 mm (height x width)

• With a sharp knife of 30 ° possibility of cutting

• Hydropneumatic saw feed (max. Traverse: 800 mm)

• Cutting speed: 1 - 4 m / min.

• Cutting capacity: 185 mm / 210 mm (vertical / horizontal) (when the material is at 90 °)

• Angle adjustment for horizontal and vertical saw

Rotating material support (horizontal): 30 ° left and right 30 °, 90 °, 45 °

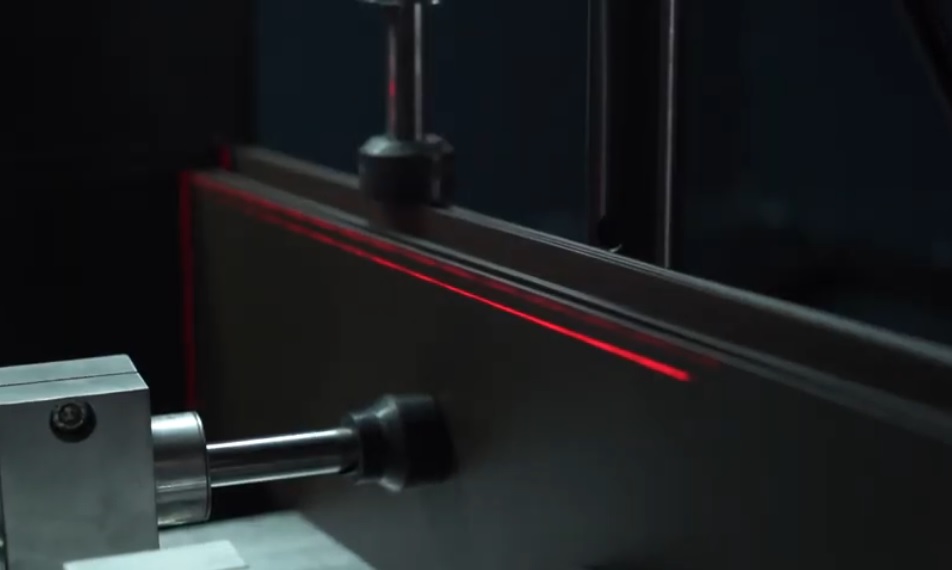

• Vertical and horizontal pneumatic profile holders?

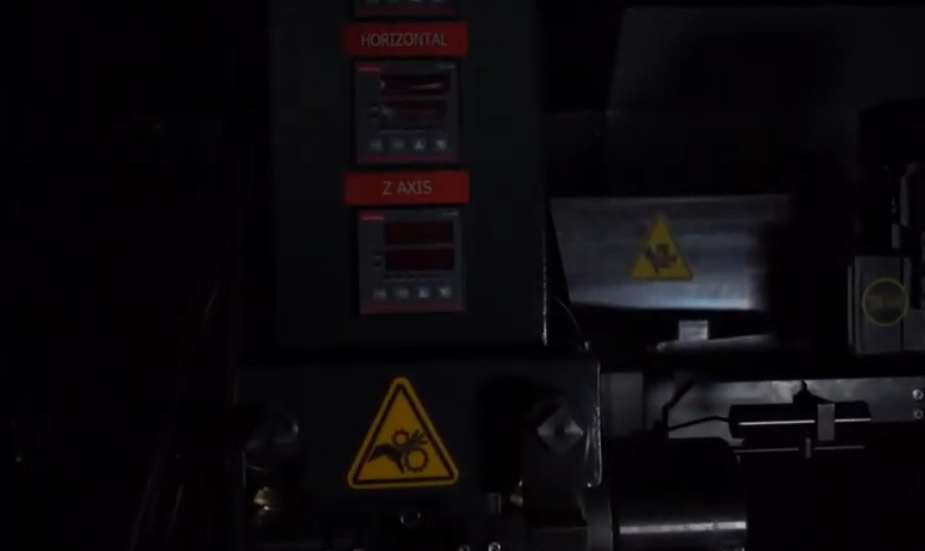

• Cutting depth and height adjustment with digital display?

• Manual saw positioning

• Spray nozzle system with 2 nozzles

• Horizontal saw can be set to 30 ° - 90 ° - 30 °

• The vertical saw can be set to 30 ° - 90 ° - 30 °

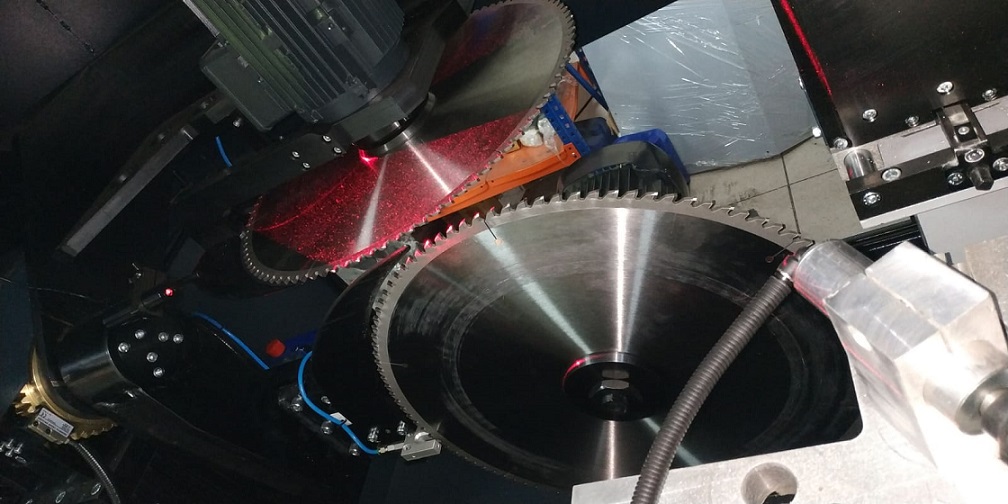

• 1 piece Ø = 500 mm horizontal carbide saw

• 1 piece Ø = 550 mm vertical carbide saw

• Can be used for aluminum profiles for facades and envelopes.

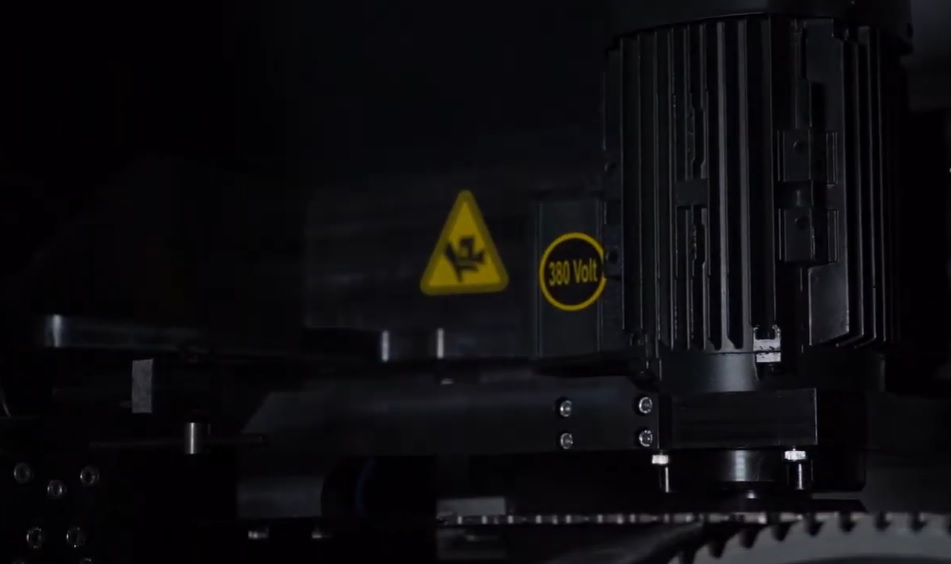

• 2 brake motors 3 kW, 400 V, 50 Hz, (2,800 rpm)

• Cutting depth, height and 2 angular axes are adjusted manually.
