AUTOMATİC SCREWDRİVER FOR PVC PROFİLES

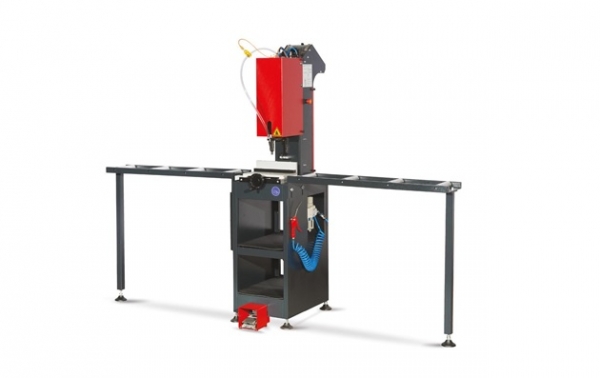

Automatic Screwdriver for PVC Profiles
Designed for fixing of reinforced steel profiles inside PVC profiles in PVC windows and doors production.
- Fixing of reinforcements inside PVC profiles in PVC windows and doors production
- Pneumatic unit of automatic screw feeding
- Pedal control of automatic screwing
- Automatic stop after screwing
- Foot pedal control for flawless screwing
- Protective sensor to prevent faulty use
- Height adjustment sensor for special screws
- Automatic clamping of profile during screwing
- Adjustable range stops supporting profile
- Durable use of bit and easy change possibility
- Setting the torque regarding to the type of screw
- Average screwing speed 1.7 sec. / 2 pc.
Technicial Specifications
- Air Consumption : 16 lt/min
- Air pressure : 6-8 bar
- Machine Height : 1820 mm
- Machine Length : 2420 mm
- Machine Width : 760 mm
- Machine Weight : 100 kg
- Minimum Profile Width : 40 mm
- Maximum Profile Width : 100 mm
- Screw Disposal Time : 1,7
- Screw dimensions to be used : Min:3,9*16 mm, Max: 4,2*38 mm
