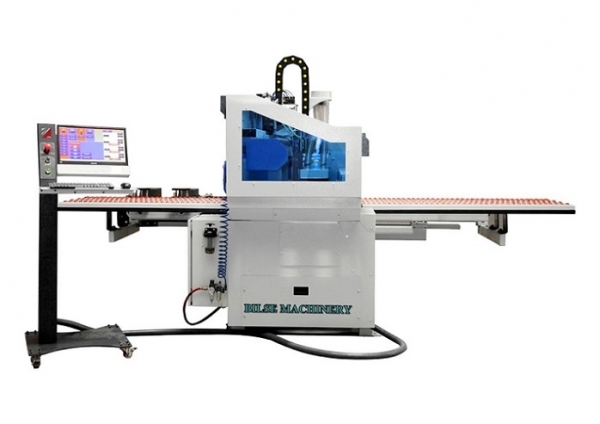

HOLEMASTER 1030 MC
3 axis servo feeding / PC Control / Office program / Language option and unlimited program memory / Full automatic panel boring machine that can operate 5 side of the surface with 14+1 drilling unit
| MAX ÇALIŞMA ALANI/MAX WORKING AREA | mm | SınırsızX1000X40 |
| MİN ÇALIŞMA ALANI/MİN WORKING AREA | mm | 250x80x12 |
| DELİCİ ÜNİTE MOTOR GÜCÜ/DRILLING UNIT MOTOR POWER | kw | 1,5 |
| DELİCİ ÜNİTE DEVRİ/DRILLING UNIT ROTATION | rpm | 4500 |
| X EKSENİ MAX HIZ/X AXIS MAX SPEED | m/min | 85 |
| Y EKSENİ MAX HIZ/Y AXIS MAX SPEED | m/min | 45 |
| Z EKSENİ MAX HIZ/Z AXIS MAX SPEED | m/min | 25 |
| DELİK DELME DİKEY SPİNDLE/VERTİCAL DRILLING SPINDLE | n0 | 8 |
| DELİK DELME YATAY SPİNDLE/HORIZONTAL DRILLING SPINDLE | n0 | 2x3 |
| TESTERE SPİNDLE/SAW BLADE SPINDLE | n0 | 1 |
| MAX TESTERE ÇAPI/MAX SAWBLADE DIAMETER | mm | 100X20X6 |
| KURULU GÜÇ/WORKING POWER | kw | 10 |
| AĞIRLIK/WEIGHT | kg | 1100 |
| KONTROL SİSTEMİ/CONTROL SYSTEM | pc | Omaksan Works |
| KONTROL EDİLEN EKSEN/CONTROLLED AXIS | Pcs | 3 |
| HAVA BASINCI/AIR PRESSURE | bar | 6*8 |
| ÇALIŞMA VOLTAJI/WORKING VOLTAGE | volt | 380V 50HZ |
| CAD/CAM PROGRAM | Adeko-Alphacam-Cabinet Vision | Op.(Prg) |
