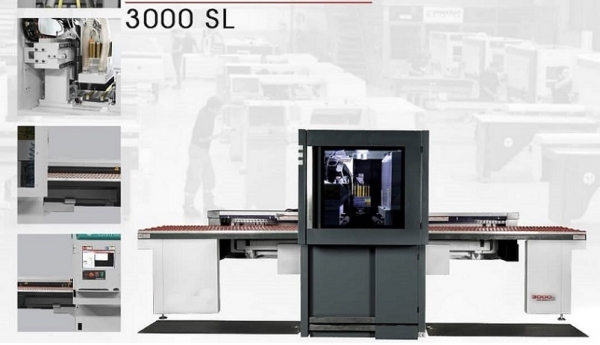

HOLEMASTER 3000 SL
Holemaster 3000 SL three axis servo feeding machine works with motion control system. Owing to 14+1 drilling unit it makes sensitive and quick operation in four side and front surface of material and do grooving process.
| Ofis Program | standart | |
| Max Working Area | mm | LimitlessX1050X40 |
| Min Working Area | mm | 200x60x8 |
| Drilling Unit Motor Power | kw | 1,5 |
| Drilling Unit Rotation | rpm | 4500 |
| X Axis Max Speed | m/min | 90 |
| Y Axis Max Speed | m/min | 40 |
| Z Axis Max Speed | m/min | 15 |
| Vertical Drilling Spindle | n0 | 8 |
| Horizontal Drilling Spindle | n0 | 2x3 |
| Saw Blade Spindle | n0 | 1 |
| Max Sawblade Diameter | mm | 100X20X6 20*6 |
| Working Power | kw | 10 |
| Weight | kg | 1550 |
| Working Dimension | mm | 2670X4610X1900 |
| Control System | pc | Omaksan Works |
| Controlled Axis | Pcs | 3 |
| Memory | Pcs | limitless |
| Automatic Working | standart | |
| Air Pressure | bar | 6*8 |
| Working Voltage | volt | 380V 50H2 |
| X Carrier Stroke | mm | 3000 |
| Dust Unit Output | mm | 1x170 |
| Carrier System | 2 Adet | 2 X clamp |
| Cad/Cam Program | Alphacam | Adeko-Alphacam-Cabinet Vision-Kapkes |
| Roller Table | Q | standart |
| Manual Lubrication | standart | |
| Preview | standart | |
| Remote Control | standart | |
| Workpiece Counting | standart | |
| Workpiece Processing Time | standart | |
| Memory Backup | standart | |
| Usb Connection | standart | |
| Ce Certificate |
