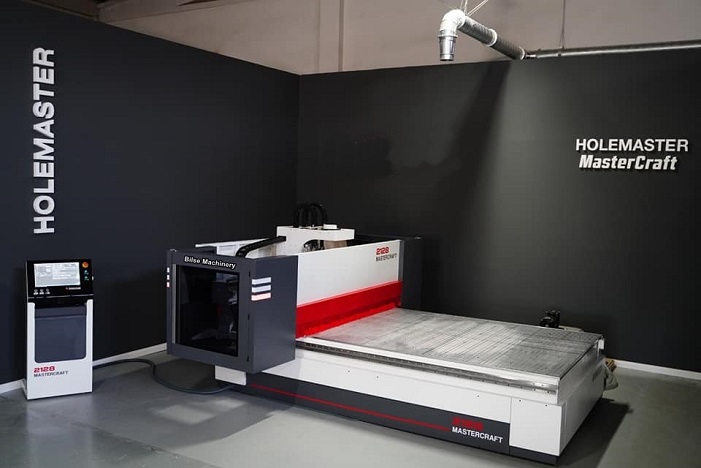

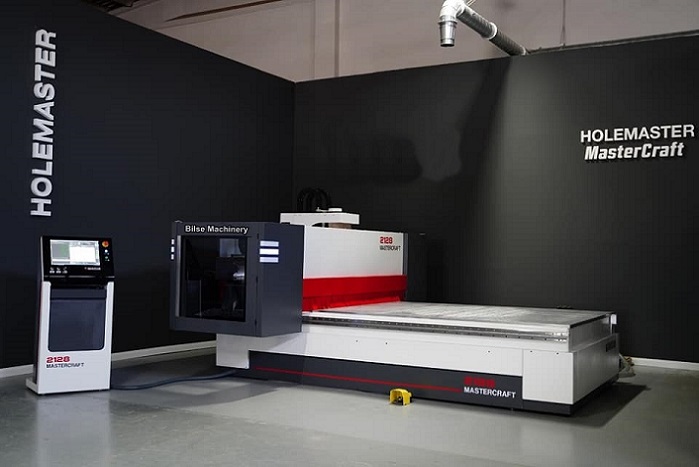

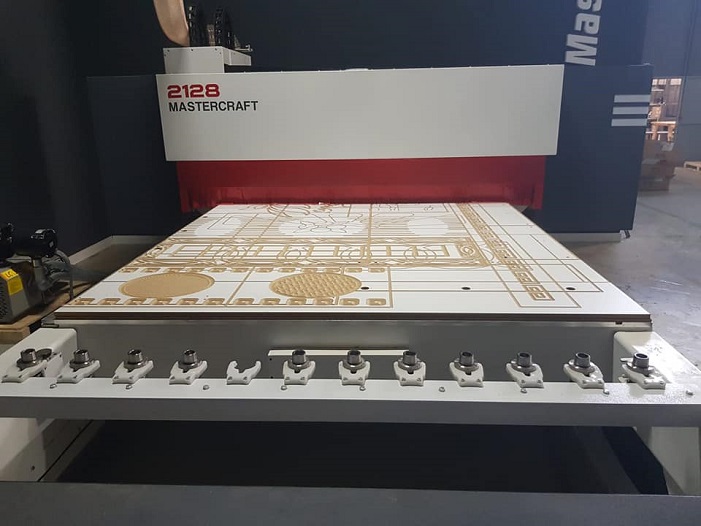

CNC ROUTER
|
|
|
|
Workpiece Area |
2100 mmx2800 mm |
|
|
|
|
Z Axis Workpiece |
250 mm |
|
|
|
|
X Axis Speed |
80 m/min |
|
|
|
|
Y Axis Speed |
80 m/min |
|
|
|
|
Z Axis Speed |
30 m/min |
|
|
|
|
X Axis Transmission |
Rack and Pinion-2x1,5 kw Servo Motors |
|
|
|
|
Y Axis Transmission |
Rack and Pinion-1x1,5 kw Servo Motor |
|
|
|
|
Z Axis Transmission |
Ball Screw-1x1 kw Servo Motor |
|
|
|
|

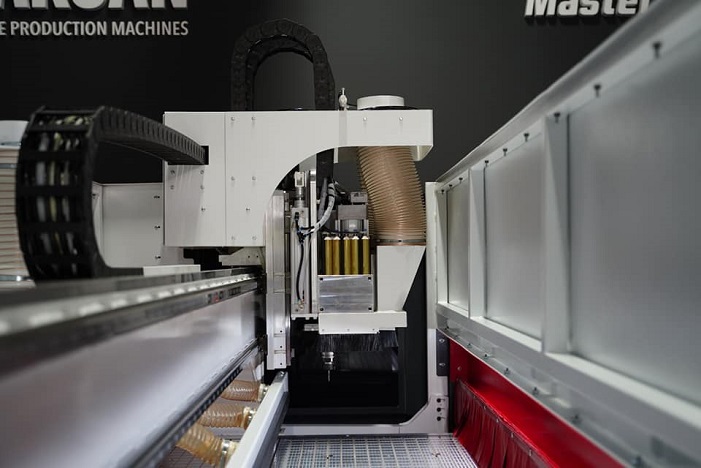

Boring Head |
2,2 Kw/9 Vertical Bits |
|
|
|
|

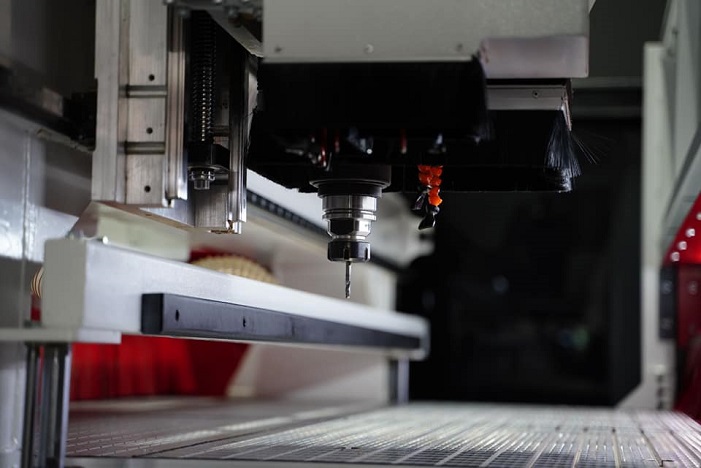

Spindle Motor Power |
9 kW / 12 HP |
|
|
|
|
Spindle Motor Rotating Speed |
24.000 rpm |
|
|
|
|
Magazine(Tool Changer) |
12 Spindles |
|
|
|
|
Cad/Cam Program |
PEGASUS 2D |
|
|
|
|

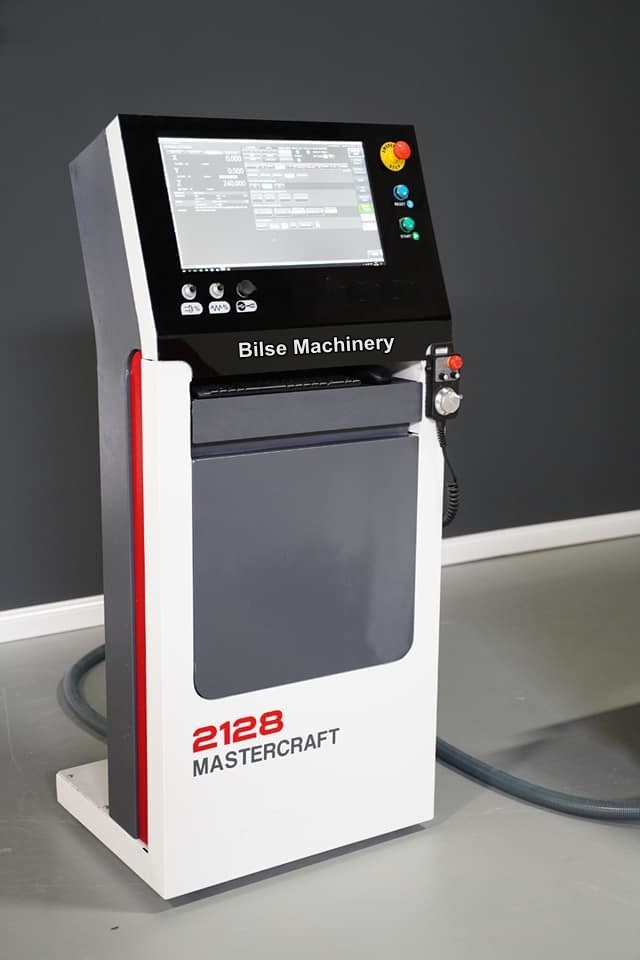

Control Unit |
PC-Based |
|
|
|
|
Total Power |
25 kW / 34 HP |
|
|
|
|
Vacuum Pump Capacity |
305 m3/h(50 Hz) |
|
|
|
|

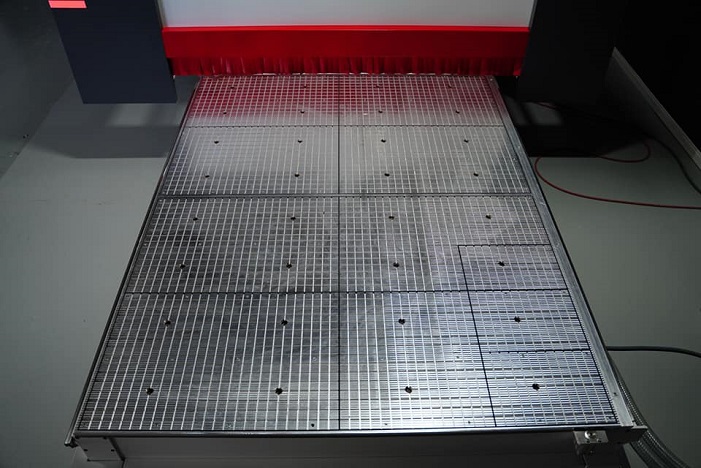

Vacuum Zones |
8 Automatic Vacuum Zones |
|
|
|
|
Weight (Approximately) |
5.000 kg |
|
|
|
|
Machine Dimensions |
5400 mm x 3900 mmx 2.100 mm |
|
|
|
§ X axis transmission will be provided by 2 pieces 1,5 kW servo controlled motor on Rack and Pinion.
§ Y axis transmission will be provided by 1 piece 1,5 Kw servo controlled motor on Rack and Pinion.
§ Z axis transmission will be provided by 1 piece 1 Kw servo controlled motor on Ball Screw.
§ Windows Real Time Operation System(RTOS)
§ OMRON CNC machine control software
§ Windows 7 and customized extension
§ Real Time interpolation axis control module
§ Input/Output signal modules
§ Machine real time application logic module
§ Electronic card that has axis drives, I / O modules and other industrial communication modules for mekatrolink digital connection
§ User friendly operation with windows and icons
§ Special keys for machine operation
§ Digital connection between control and axle drives
§ Windows and icons that make the program easier to use
§ Profile and hole program with Assistant Editor
§ Tracking function
§ Optimization system that chooses the shortest path and the most suitable drill / spindle for the job to be done
§ Fault identifier
§ Parametric programing
§ Drawings made by Autocad can transfer to machine,
§ Intel I5 processor Quadcore
§ 16 GB DDR4RAM
§ 128 GB SSD hard disk
§ 21" Screen
§ Graphics Card
§ Keyboard
§ Mouse
§ Ethernet Card for Network Connection
§ Machine moving parts are lubri
