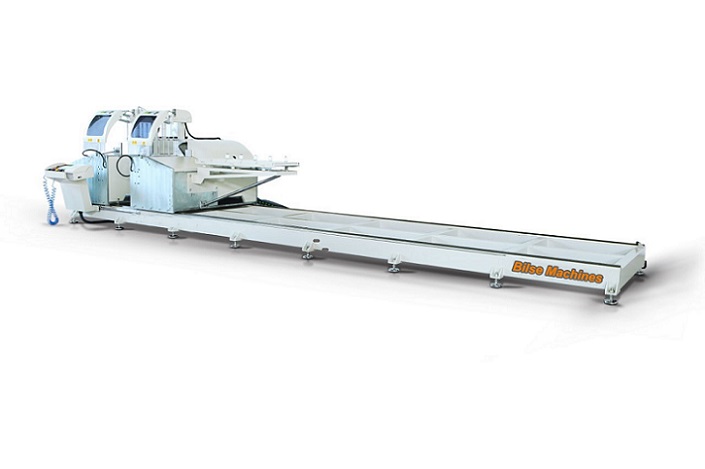

RADIAL WIDE CUTTING SECTION 600

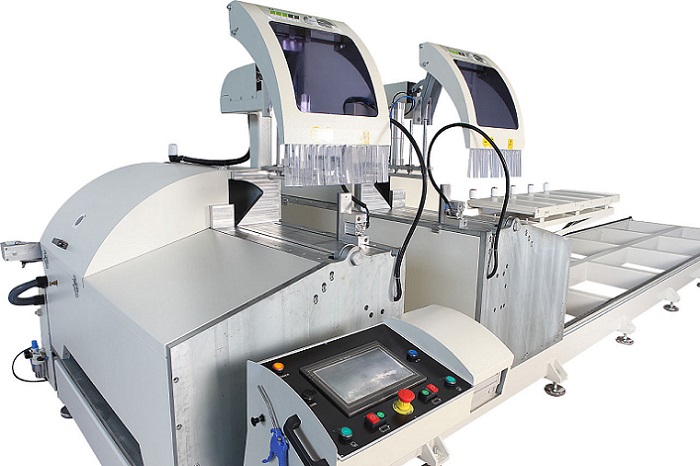

Radial Double Mitre Saw

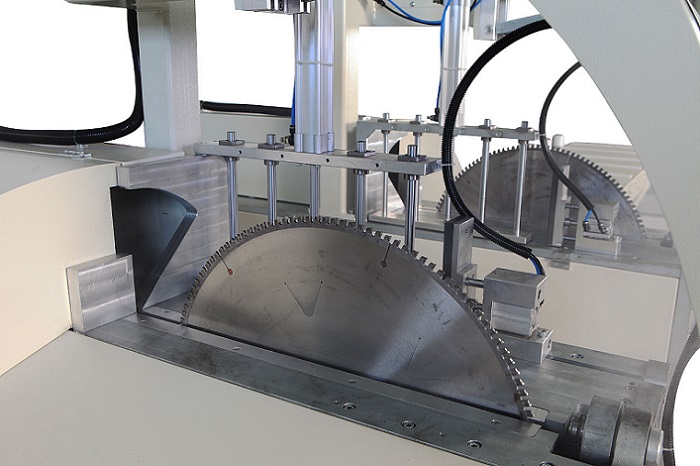

Huge cutting section thanks to the radial moving sawblade

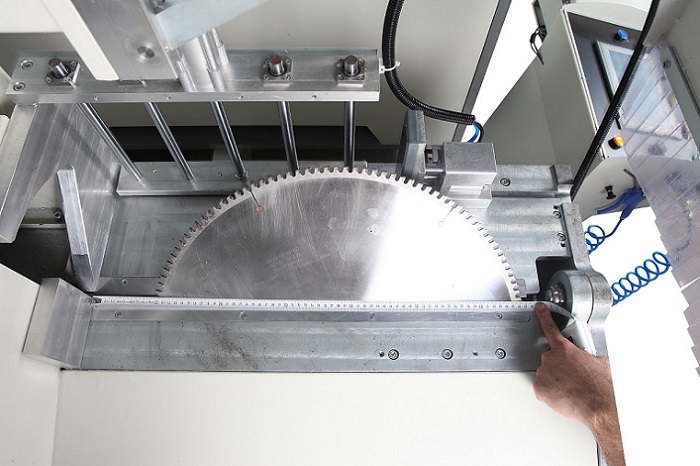

Sawblade diameter 600 mm. / 4,0 kW 2.800 rpm motors

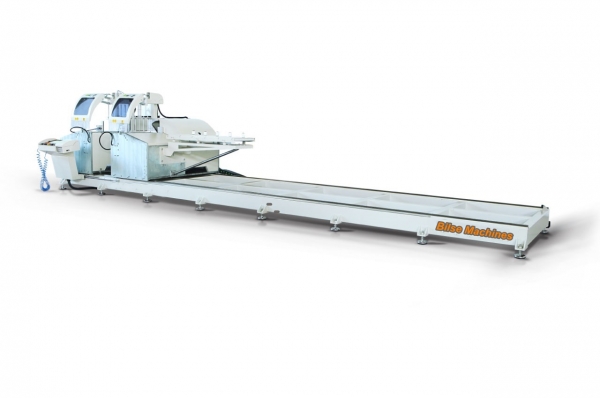

Net cutting length of 6.500 mm that can be extended to 12.000 mm with software support.
Cutting width in 45 degrees: 144 X 355 mm.
Cutting Height in 90 degrees: 200 X 355 mm.

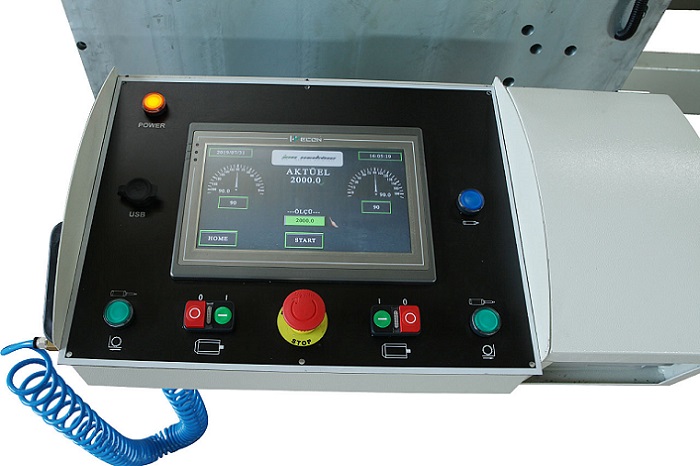

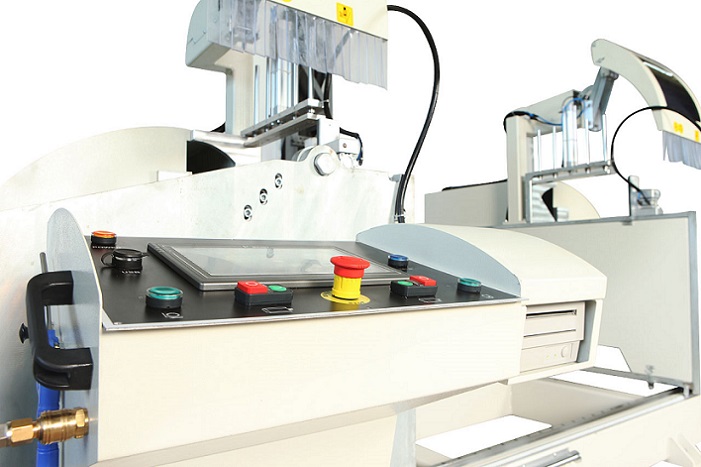

10.2” TFT-LCD Touchpanel + PLC Controller
The crack mill basis + the linear guides basis are machined, the crack mill and the linear guides connection holes are drilled&tapped with 5 Axis Metal Processing Center. Electrostatic Powder Coated Painting.
Movable head is moving on crack mill + linear guides (30 mm.) with brushless servo motor (750 W) + reducer
Pulse spray mist coolant system
Cutting heads tilting 45-90 degrees pneumatically through a cylinder and inbetween angles are adjusted manually
Automatic cutting with a receipt prepared by the operator.
Hydro-Pneumatic feeding of the cutting saws.
1.5 meter supporting roller conveyor connected on the movable head.
Protection covers moving up and down automatically

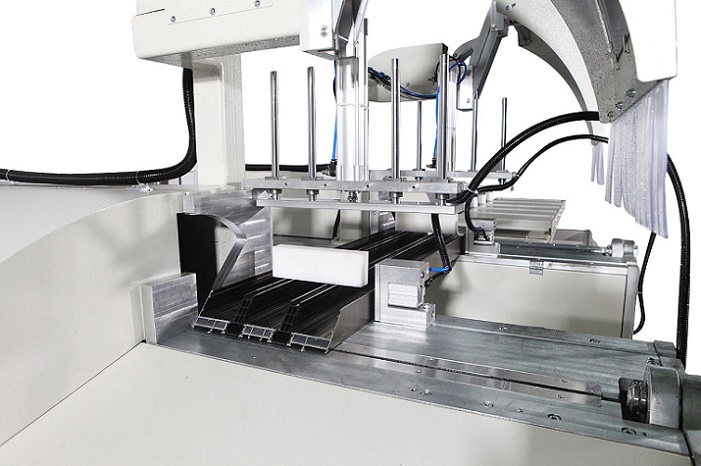

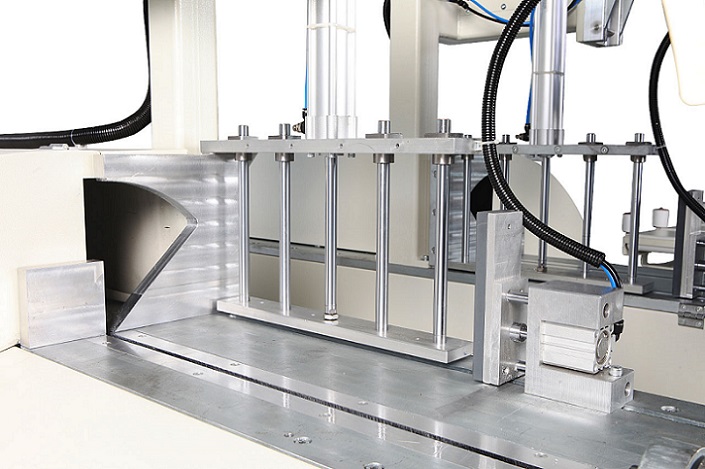

2 pieces of horizontal and 1 piece vertical clamping pistons for each head.
Colored cables inside the electrical cabinet.
Protection relay for the cutting heads movement cycle.
Movable dust extraction drawers placed under the machine.
CE Certificate by KIWA / Users’ manual – English Language
Optional Equipment:
Tilting both heads 90-45 all inbetween degrees automatic through electronic motors + actuator with screw mill and a 3 Axis CNC controller.
Data transfer package for working together with window softwares. Importing data, barcode printing and transferring data to the CNC profile machining center through the barcode.
Machine dimensions: 9.500 X 2.300 X 2.250 mm.
Machine Weight: 4.000 kgs.
