DOUBLE MITRE SAW 550
DOUBLE MITRE SAW

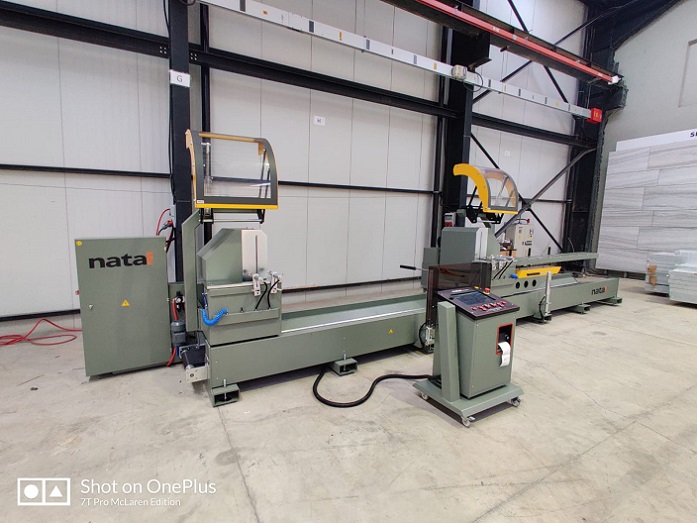

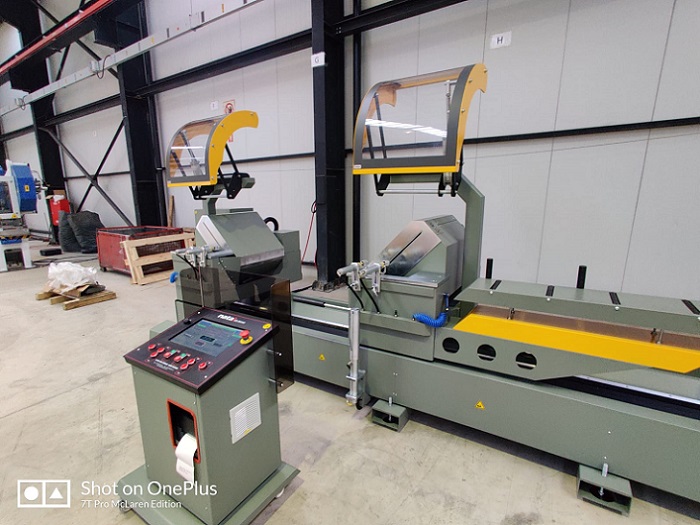

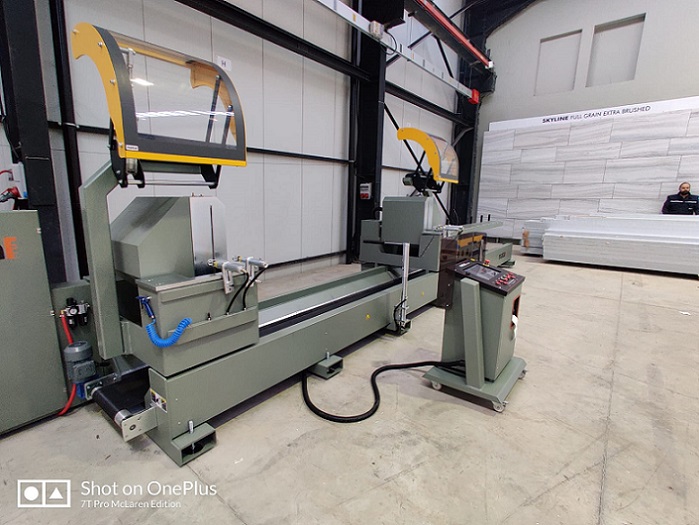

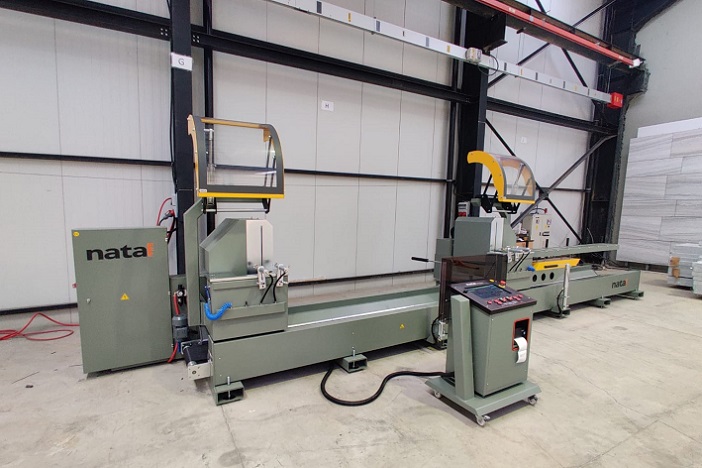

Automatic double mitre saw for cutting aluminium profiles.
Electrowelded and machined ridig steel contruction.
Sawblade diameter 550 mm. / 2.8 kW 2.800 rpm motors .
Net cutting length of 6.000 mm that can be extended to 11.500 mm with software support.

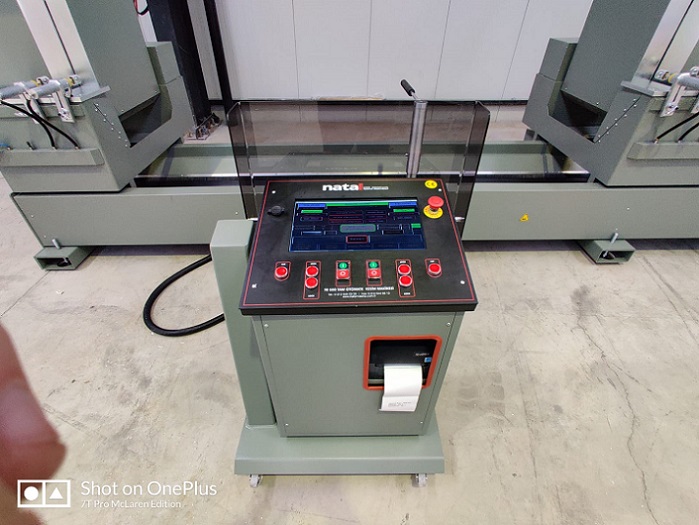

15.0” TFT-LED TouchPanel controller screen.
Hydro-Pneumatic feeding of the cutting saws.
Pulse spray mist coolant system.
Movable head is moving on crack mill with brushless servo motor and reducer through linear guides.
The saw-feed mechanism is moving with a cross-section way following a bow type path to clamp the profile better, to maintain the perfect cut surface and also protect the sawblade’s lifetime.
Cutting heads tilting outside 22.5°/45°/90°/135° servo control a cylinder and inbetween angles are adjusted manually.
Maximum cutting width: 165 mm.
Maximum cutting height: 300 mm.
Minimum cut from 45° to 90° tilted outside: 630 mm.
Minimum cut in 45° tilted with pneumtic feed option: 430 mm.
Minimum cut in 45° with short piece support: 375 mm.
Total installed power: 9 kW / 18A / 400 V / 50-60 Hz. / 3Phase
Air pressure and air consumption: 6-8 Bar. – 70 L/min.
Protection covers moving up and down automatically.
2 pieces of horizontal and 1 piece vertical clamping pistons for each head.

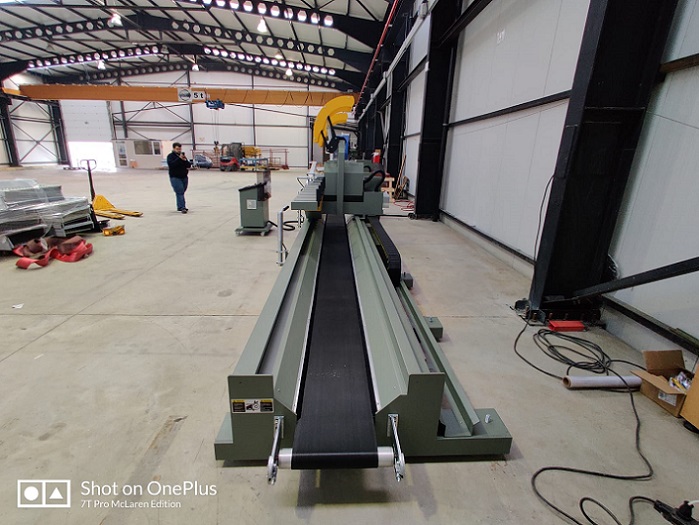

Roller conveyor connected on the movable head.
Colored cables inside the electrical cabinet.
CE Certificate / Users’ manual – English Language.
Optional Equipment:
Data transfer package for working together with window production softwares. Importing data, label printing and transferring data to the CNC profile machining center via barcode.
Label printer.
