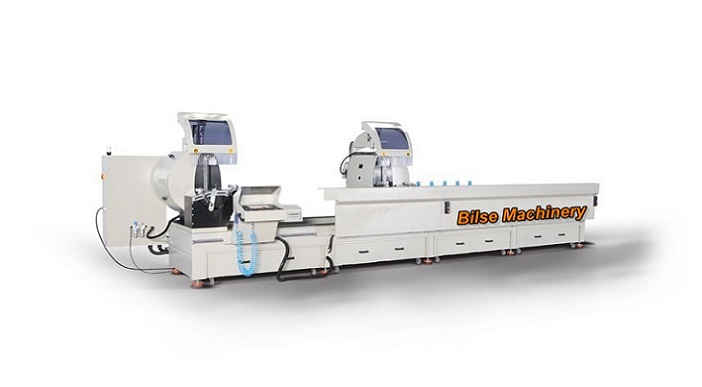

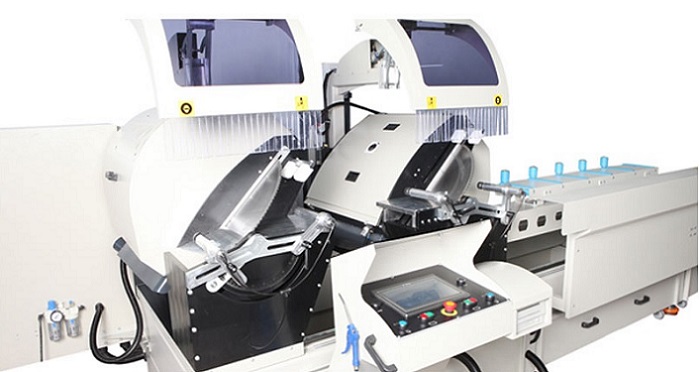

DOUBLE MITRE SAW 600
DOUBLE MITRE SAW CUSTOMIZED FOR ALUMINIUM PROFILES – 600
Sawblade diameter 600 mm. / 3,0 kW 2.800 rpm motors
Net cutting length of 6.000 mm that can be extended to 11.500 mm with software support.

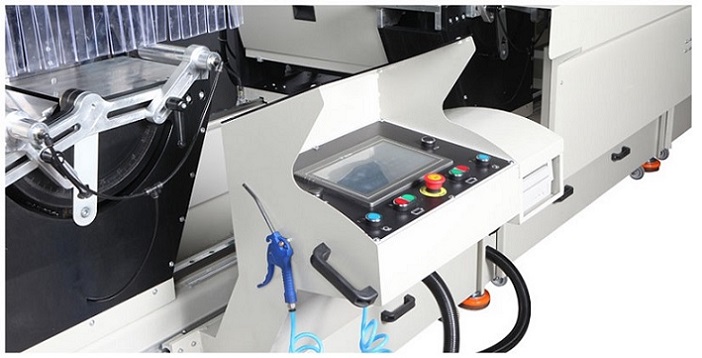

10.2” TFT-LCD Touchpanel + PLC Controller
Movable head is moving on crack mill + linear guides (30 mm.) with brushless servo motor (750 W) + reducer
Pulse spray mist coolant system
Cutting heads tilting 45-90 degrees pneumatically through a cylinder and inbetween angles are adjusted manually
Automatic cutting with a receipt prepared by the operator.
Hydro-Pneumatic feeding of the cutting saws.
The saw-feed mechanism is moving with a cross-section way following a bow type path to clamp the profile better, to maintain the perfect cut surface and also protect the sawblade’s lifetime.
Protection covers moving up and down automatically

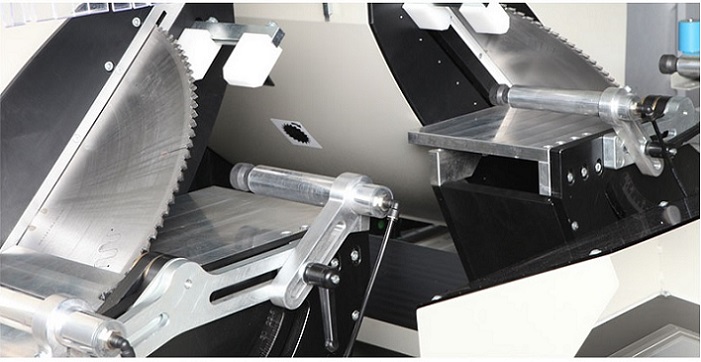

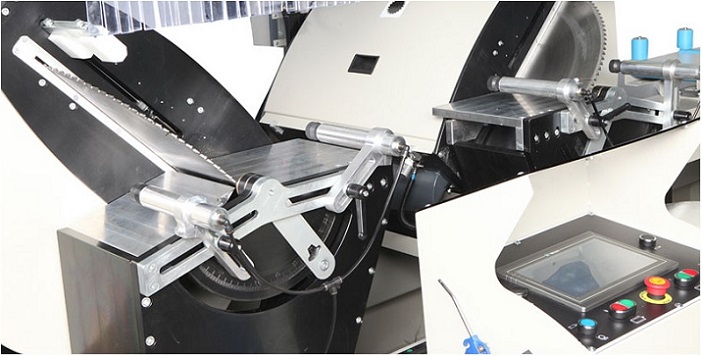

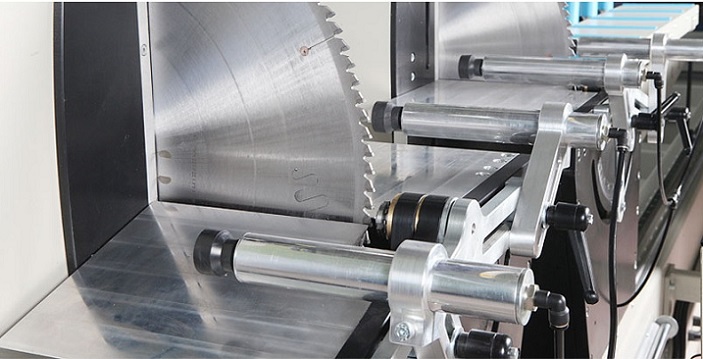

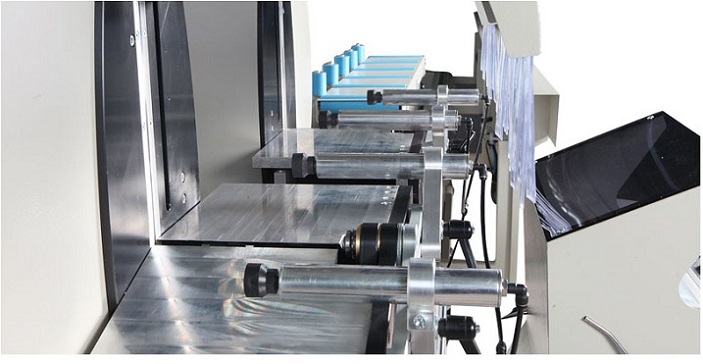

2 pieces of horizontal and 1 piece vertical clamping pistons for each head.
Colored cables inside the electrical cabinet.
Protection relay for the cutting heads movement cycle.
Movable dust extraction drawers placed under the machine.
CE Certificate / Users’ manual – English Language.
Machine models:
AS 434/40 – 4 meters 45/90 pneumatic, inbetween degrees manual
AS 434/41 – 4 meters 22.5/135 all degrees through servo motors
AS 434/60 – 6 meters 45/90 pneumatic, inbetween degrees manual
AS 434/61 – 6 meters 22.5/135 all degrees through servo motors
Optional Equipment:
Tilting both heads inside 45 to outside 22,5 all inbetween degrees automatic through electronic motors and a 3 Axis CNC controller.
Data transfer package for working together with window softwares. Importing data, barcode printing and transferring data to the CNC profile machining center through the barcode.
Barcode printer.
Pneumatic profile lifting bar mounted on the stationary head for preventing profile from scratches during the automatic cutting cycle.
Pneumatic profile supports moving up and down automatically.
Protection piece mounted in front of the movable head and emergency & clamp buttons placed on the protection piece.
Dust collection trays.
