CRIMPING MACHINE 10000

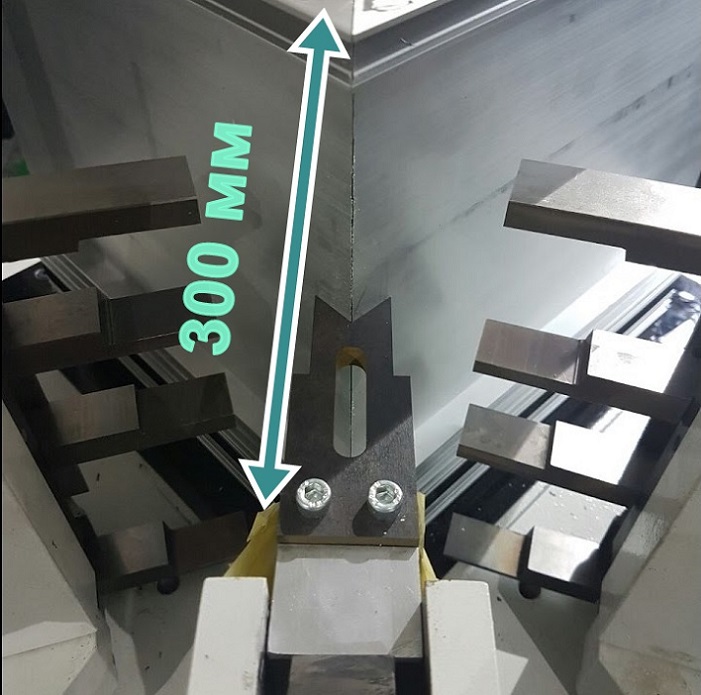

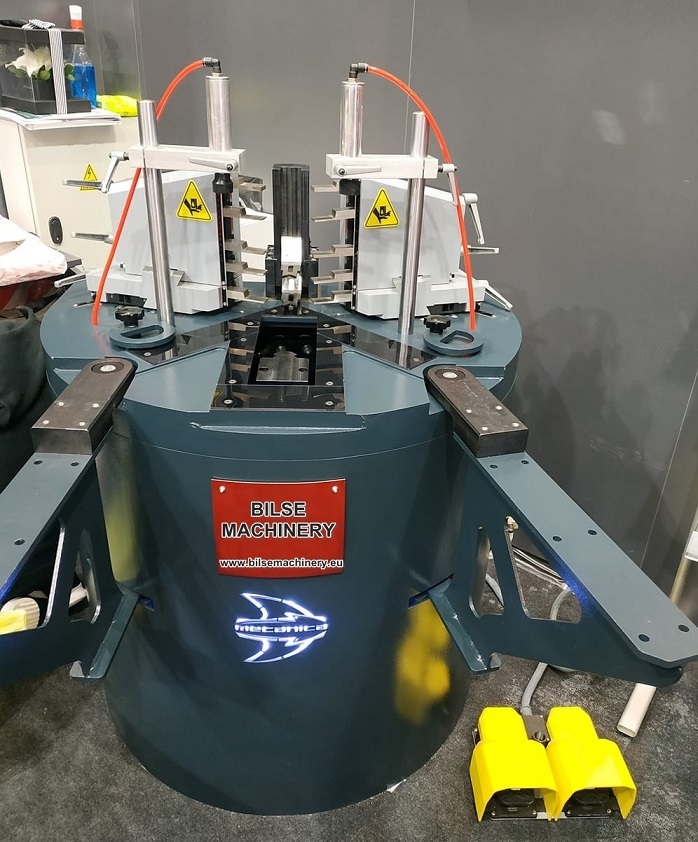

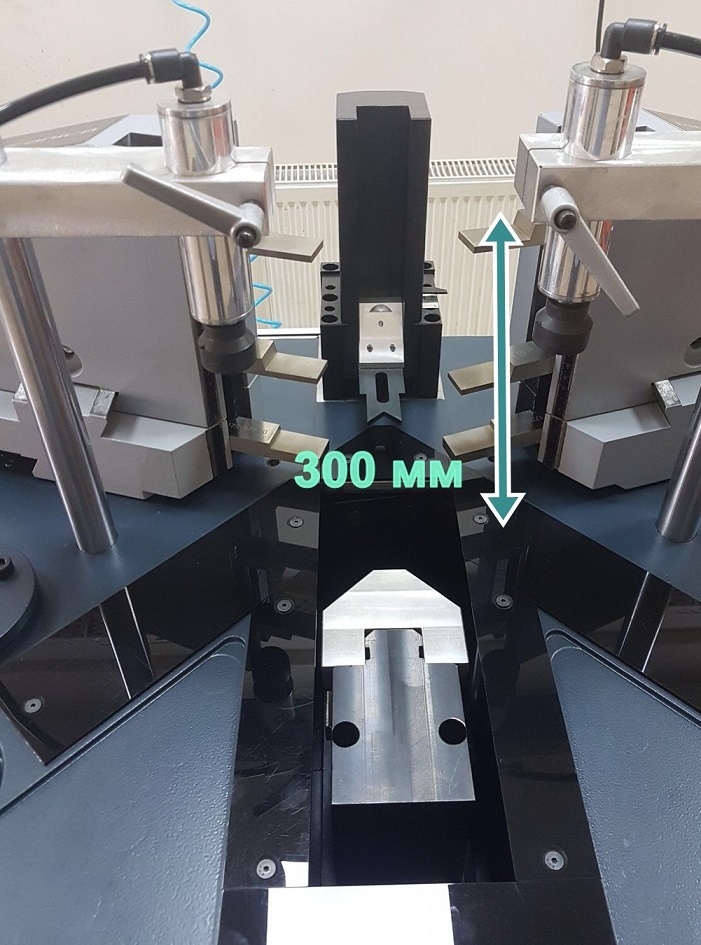

Specially designed for modular aluminum panel profile series, large sectioned sliding doors and windows systems, MPR is able to crimp high aluminum profile frames up to 30cm. It enables to produce perfect and stiff frame corners thanks to its PLC controlled and pressure adjustable hydraulic crimping blocks together with inner supporting unit of the frames. Crimping blocks made in two pieces, upper part being slidible on top of the lower part, enables to crimp non-semisurfaced profile contours by using the stadard crimping knives, a good example to this is thermally insulated aluminum window profiles. Besides, the inner supporting block is made in three seperate blocks which enables to suport zigzag shaped profiles easily and thus making the machine crimping perfect corners without any need to make special tooling. The hydraulically powered crimping head blocks with 100 Bar crimping pressure, eliminates the angular and dimentional production errors of doors and windows profiles, by assembling them through its power.
